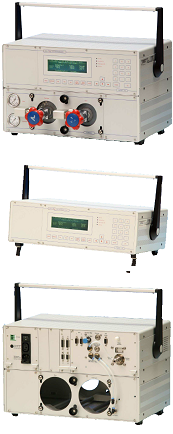

VOC Analyzer (Thermo-FID)

The portable Volatile Organic Compound (VOC) Analyzer has a Flame Ionisation Detector (FID) which measures the total organic carbon contained in the gas sample.

It is a complete and compact analyser with a dimension of two 19” rack, or three racks, if you optionally have a support for the gas calibration bottle holders or a hydrogen pressure regulator and calibration gas.

The VOC monitoring and analysis is used in nearly all types of industrial applications in environmental protection initiatives as well as in investigation and development laboratories as its main application.

With a weight of 11Kg (16Kg in case of the 3 rack option) presents a detection limit lower than 0,05 mg org C/m³.

MEASURING RANGE:

• Flame Ionization Detector (FID).

COMMON APPLICATIONS:

• VOC monitoring and analysis in environmental protection initiatives;
• Use in investigation and development laboratories;
• Lower Explosive Limit (LEL) in industrial Process;
• Emission and immission control in the process exhaustion gases in the Chemical Industry;
• Optimization of the production process;
• Analytic control of the values and tolerance limit concentrations of hydrocarbons by the human body.

MEASURING DETAILS:

• Range: 2mg org C/m³ to 100.000 org C/m³;
• Detection Limit: < 0.05 mg org C/m³;
• Linearity: < 4% above measurement range.

DIMENSIONS/WEIGHT:

• 483x155x380mm/483x290x380mm (with bottle holders);
• 11 Kg/16Kg (with bottle holders).
