Hidrostatic Levels

BHB provides a wide range of level meters using different measuring principles according to the characteristics of the sample measured as well as the applications for which they were designed.

The hydrostatic level transmitter is intended to measure the level in tanks, deep wells and reservoirs, also being used to protect pumps that are submerged in deep wells.

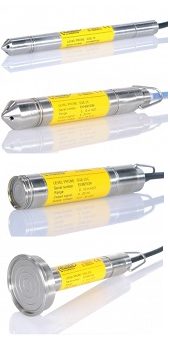

It consists of a hydrostatic probe with a diameter of 15 or 25mm, and a cable which incorporates a capillary tube with a compact dimension, also being available for explosive atmospheres.

We must also point out that there is a possibility of manufacturing special meters (in what concerns the probes, diaphragms, cables, certifications, ...) and therefore please do not hesitate in contacting us for these situations.

MEASURING PRINCIPLE:

•  Pressure of the hydrostatic column.

COMMON APPLICATIONS:

• Deep wells, tanks, reservoir and dams;
• Wastewater Treatment Stations;
• Submersible pumps control and protection:
• Process liquid effluents.

MAIN FEATURES:

• 15 to 25mm diameter;
• Range 1 to 500m H₂O;
• Accuracy 0,2%;
• Overpressure limit 100xrange (max 700m H₂O);
• Temperature range: -25ºC to 75ºC;
• Output signal: 4–20mA / 0 to 10V;
• Overvoltage internal protection;
• ATEX and Marina DNV Certified.
